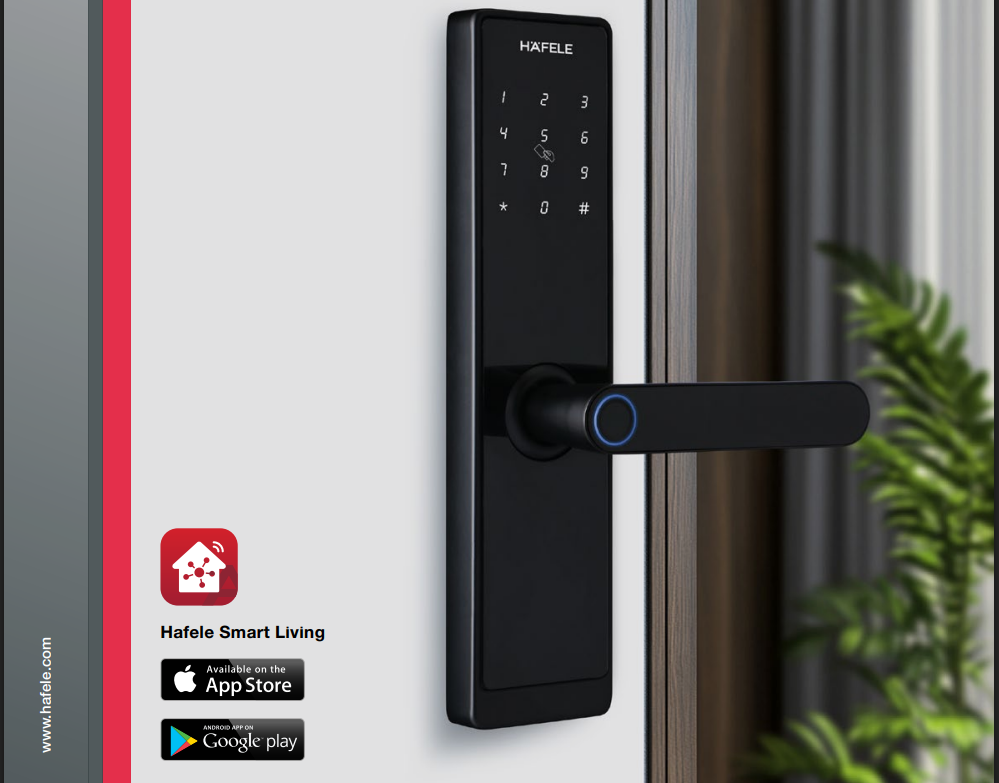

Electronic Lock

⚠️Safety Note

Product usage instruction video

Installation video

Frequently Asked Questions (Q&A)

Key Features

• 5-in-1 Unlocking Methods: Fingerprint, PIN Code, RFID card, Häfele Smart Living App, and Mechanical Key.

• Lock management by owners and users to increase security for the device.

• Voice guide by English.

• Anti-expose password function using virtual password.

• Privacy function from indoor.

• Low battery alarm.

• Emergency power USB-C.

Technical Specifications

• Storage Capacity: 150 Key Cards, 150 PIN Codes, 100 Fingerprints; up to 10 Admins managed via the Häfele Smart Living App.

• Dimensions: 65 (W) x 275 (H) x 70 (D) mm.

• Materia: Aluminum alloy combined with ABS plastic.

• Power source: 4 x 1.5V AAA batteries.

• Emergency power: USB-C port.

• Operation temperature: from -20°C to +75°C.

• Origin: China.

Installation Requirements

• Door thickness: 33 - 50 mm.

• Door stile: 100 mm.

• Door type: Wooden.

• Openning type door: Swing door.

• Door gap for wooden door: ≥ 3 mm.

Optional accessories

• Battery (Sku 912.20.992).

• Big card (Sku 917.80.739).

Included Accessories

• 2 Big cards (85 x 54mm.

• 2 Small cards (40 x 25mm).

• 2 Mechanical keys.

• 1 screw and spindle set.
