Electronic Lock

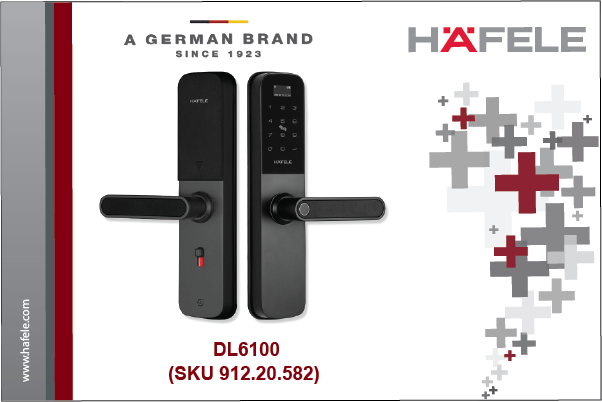

Häfele DL6100 Digital Door Lock (SKU 912.20.582)

The DL6100 features a modern German-standard design and is equipped with advanced capacitive fingerprint recognition, providing 99.99% accuracy within just 0.5 seconds. With multiple unlocking options and high-level security features, DL6100 ensures both convenience and maximum safety for your home.

⚠️Safety Note Product usage instruction video Installation video Frequently Asked Questions (Q&A)

Key Features

Capacitive fingerprint technology: Recognizes fingerprints with 99.99% accuracy in just 0.5 seconds.

5 unlocking methods: Fingerprint, PIN code, RFID card, Hafele Smart Living app, Mechanical key.

Dual authentication: Combine any 2 of the 3 (fingerprint / PIN / card) for extra protection.

Anti-password peeping and intrusion alert: Enhances overall security.

Low battery alert and Micro USB emergency power port (5V).

Privacy mode: Locks access from outside when needed.

User management: Admin can grant/revoke access and monitor entry history via the app.

Durable construction: 304 stainless steel body, corrosion-resistant and impact-resistant.

Elegant German design: Adds sophistication to any entrance.

Technical Specifications

Capacity: 100 fingerprints, 50 RFID cards, 50 PIN codes, 2 mechanical keys; managed via Hafele Smart Living app.

Dimensions: 70 (W) x 290 (H) x 26 (D) mm.

Material: Aluminum alloy, 304 stainless steel.

Power supply: 4V – 6.5V (4 AA alkaline batteries).

Low battery warning: At 4.8V.

Emergency power input: 5V via Micro USB.

Operating temperature: -30°C to +70°C.

Operating humidity: 15% – 95% RH.

Installation Requirements

Door thickness: 38 – 60 mm.

Backset (frame width): ≥ 110 mm.

Door gap: ≥ 3 mm.

Included Accessories

2 large RFID cards (85 x 54 mm)

2 small RFID tags (35 x 25 mm)

2 mechanical override keys

Origin: China.
